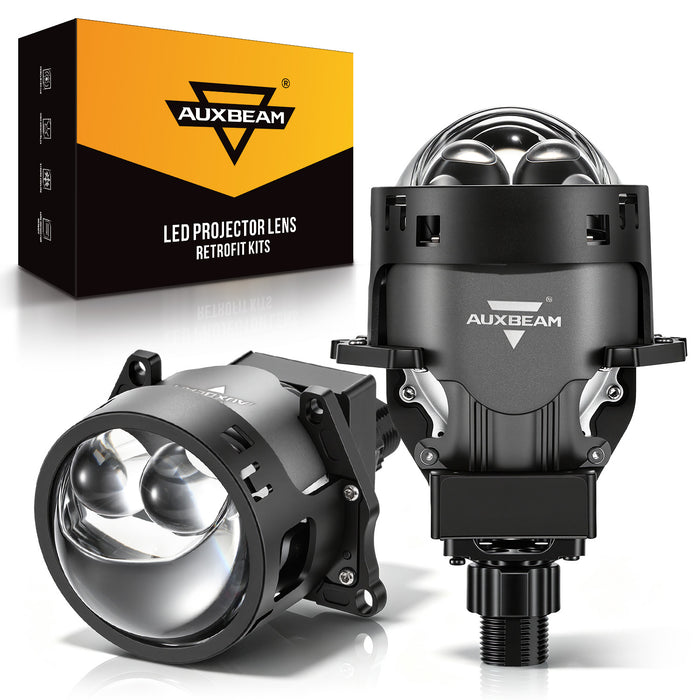

3 Inch 160W 6000K Bi-LED Projector Headlight Dual Laser Beam S8 Series Non-Destructive & Retrofit Compatible Upgrade Kit

NOTE: If you need to modify the H4 sockets, you will need to purchase an option with the H4 wiring harness.

If you need to modify the H1/H7, 9005/9006 sockets, you will need to purchase an option with the H1/H7/9005/9006 wiring harness. This will ensure that you have the necessary components to make the modifications safely and effectively.

MAIN FEATURES

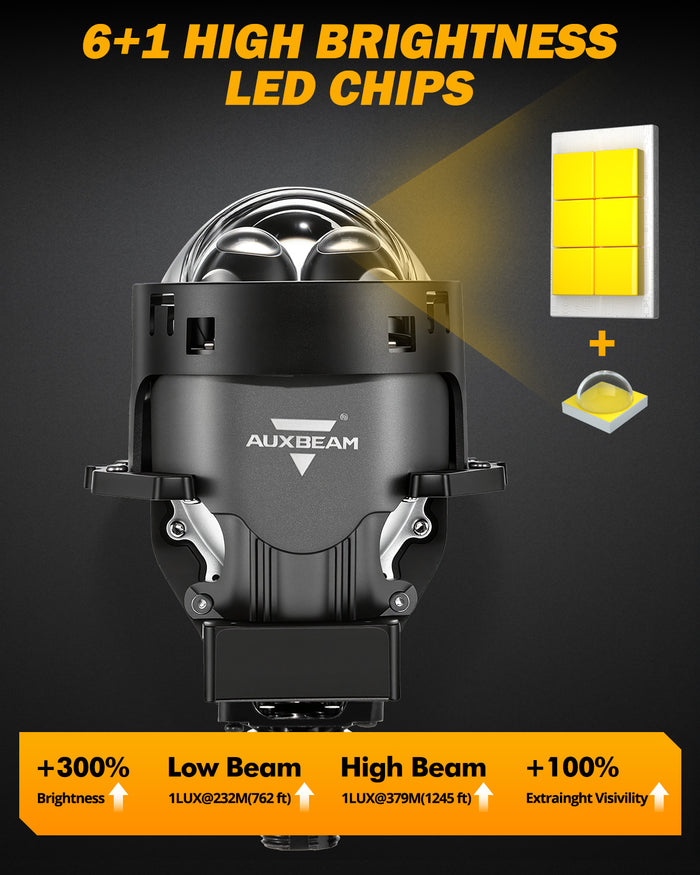

• Ultra-High Brightness
  6+1  high-performance LED configuration for stable and efficient light output.
  Delivers up to 300% increased brightness compared to halogen bulbs for improved night visibility.
• Long-Range Illumination Performance
  Low beam 1LUX @ 232m (762 ft) / High beam 1LUX @ 379m (1245 ft) for extended forward coverage.

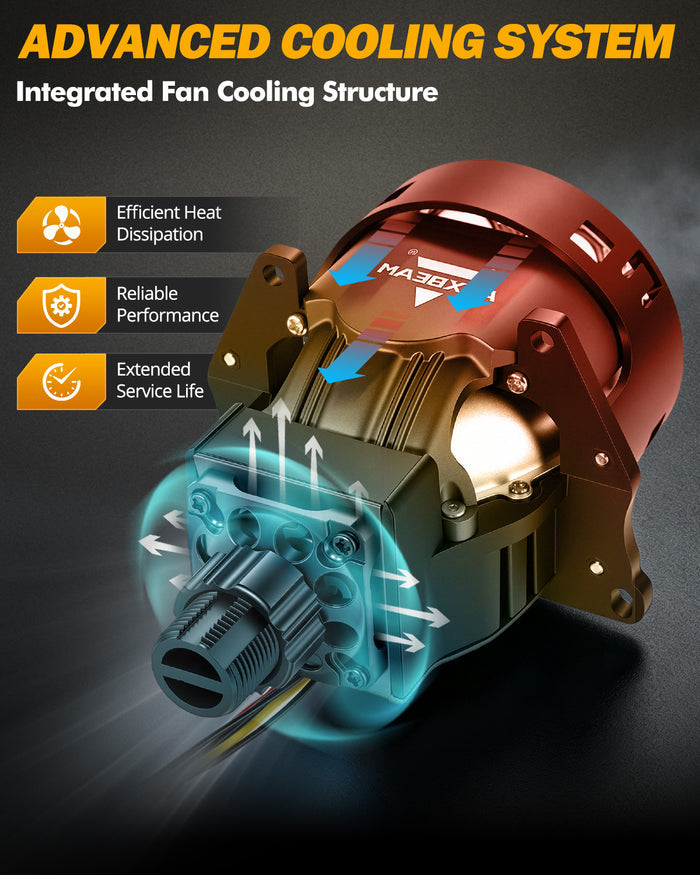

• Advanced Cooling System
  Built with aluminum alloy housing, multi-channel heat dissipation, and a high-speed cooling fan for efficient thermal management. Ensures stable performance and over 50,000 hours of lifespan.
• Non-Destructive & Retrofit Dual Installation System
  Designed with a secure threaded shaft mounting structure, this system supports both non-Destructive and retrofit installations. Compatible with H4 / H7 / 9005 / 9006 sockets and fits approximately 95% of vehicles.
• Non-Destructive & Destructive Installation
  Lens retrofit kits are designed to upgrade the headlight beam pattern; installation requires disassembling the headlight assembly, so professional modification is strongly recommended.
  Please consult local professional installers before purchasing. We offer both "non-destructive" and "destructive" installation series; the included rear mounting brackets are designed to fit the internal space of specific headlight assemblies, eliminating the need for drilling during installation.

SPECIFICATIONS

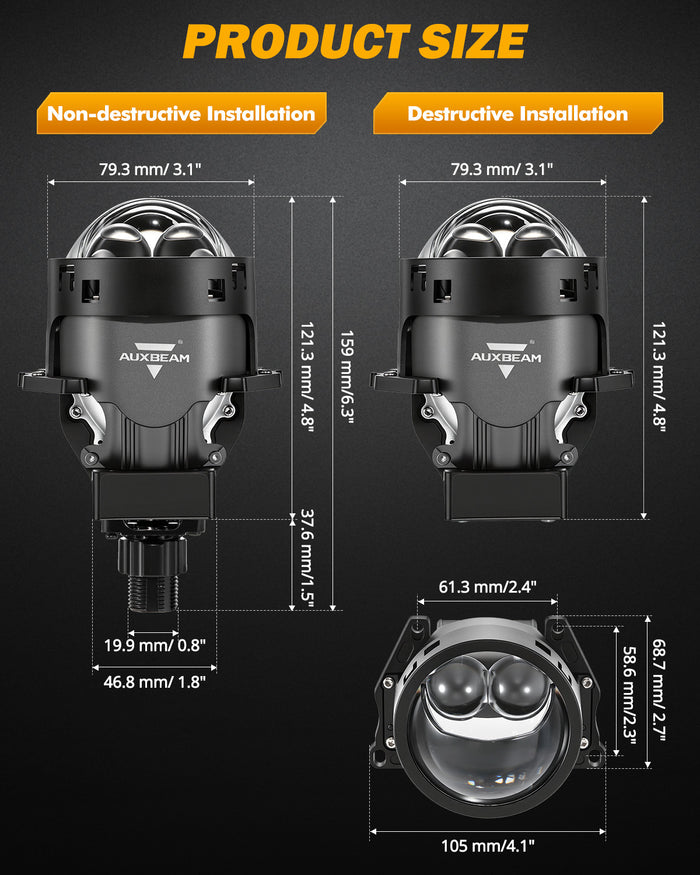

Size: 3Inch
Quantity: 2PCS
Power (Pair): 90W Low Beam / 160W High Beam with Spot
Lighting Distance: Low Beam 1LUX@232M(762ft)/High Beam 1LUX@379M(1425ft)
Color Temperature: 6500K
Voltage: DC 9-16V
LED Chip: CSP3570 (6-chips) / 5050 LED
Waterproof Rating: IP67
Operating Temperature: -40℃ - 120℃
Lifespan: 50,000 Hours
Shell Material: Aluminum Alloy
Bracket Material: PC
Adapter Type: H4, H7, 9005, 9006

PACKAGE INCLUDED

3inch Bi-LED Projector Headlight*2
