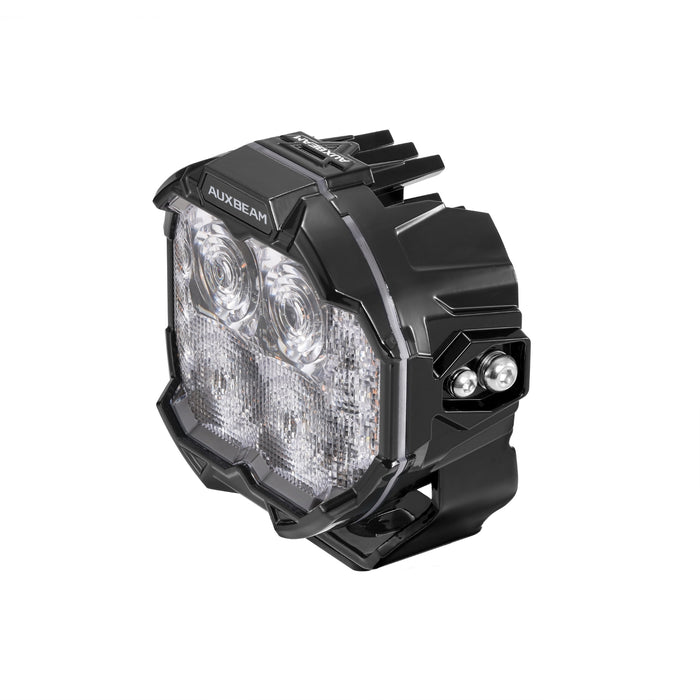

MASTER-T Series 5" Combo Beam Off-Road Lights with Dynamic Start-Up Amber Backlight

Features:

Precision Optics, Maximum Light Output – An advanced lens design delivers superior efficiency and far greater penetration than generic lenses. Precision optical tuning minimizes glare for clearer, safer vision. The Combo Beam combines long-range focus and wide-angle coverage with no dark spots – making it the ultimate all-terrain lighting for any condition.

Extreme Brightness + 60° Side Illumination – High-output LEDs and precision optics deliver class-leading brightness, while side-emitting LEDs light up corners and side blind spots – so you own every turn on the trail

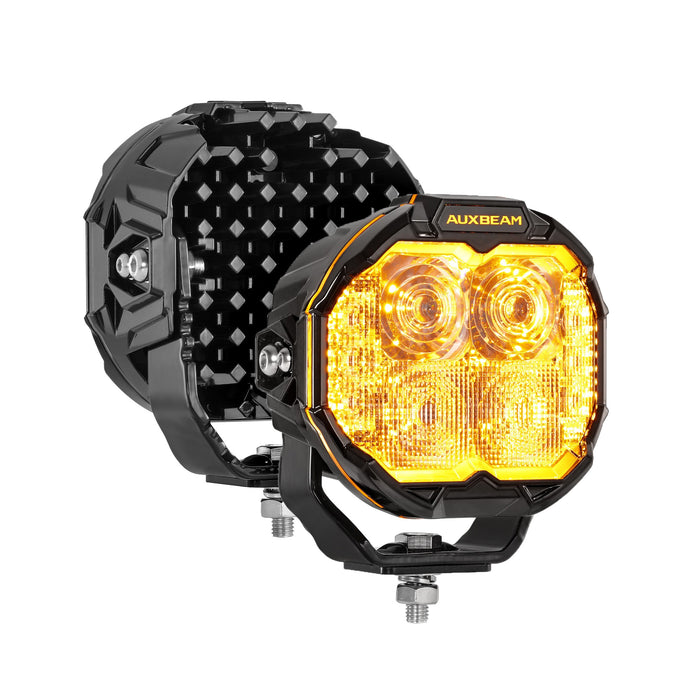

Dynamic Start-Up Backlight – On startup, flowing amber light sweeps across in a welcome sequence, pulses in a breathing rhythm, then settles into a steady glow. Daytime warning presence, nighttime ambient accent – making your ride stand out.

Efficient Heat Dissipation – Diamond-pillar housing design maximizes surface area for superior cooling, reinforces structural rigidity, and gives the lights a rugged, aggressive look.

IP68 Waterproof – Rain, river crossings, mud – these lights take it all. Military-grade breather valve effectively prevents fogging and condensation. Built to shrug off downpours and water crossings.

Gravel-Proof & Impact-Resistant – High-strength PC lens resists scratches and impacts. Die-cast aluminum housing withstands flying rocks. Engineered for gravel roads, off-road terrain, and the harshest conditions.

Specification:

Size: 5 Inch Round
Power/Set: 176W (Main Light 80W + Amber Backlight 8W) x 2
Total Lumens: 20800LM (9600LM + Amber Backlight 800LM) x 2
Housing Material: Aluminum Alloy
Lens Material: PC Lens
Lamp Beads Model (Each): SFT-25R 20W/PCS x 2 + 7545 30W/PCS x 2 + SST-20F 5W/PCS x 6 + 3014 8W
Lighting Distance: 1 LUX @ 425M
Beam Pattern: Combo Beam (30° + 60°)
Light Color: White Main Light + Amber Backlight
Color Temperature: 6500K & 3000K
Life Time: 50,000+ hours
Waterproof Rate: IP68
Working Voltage: 9-30V (Wiring harness relay is 12V only, can be replaced with 24V)

Packing Included:

2 x LED Pod Lights (With 3PIN DT Plug)
1 x Wiring Harness (With 3PIN DT Plug)
1 x Screw Accessories
